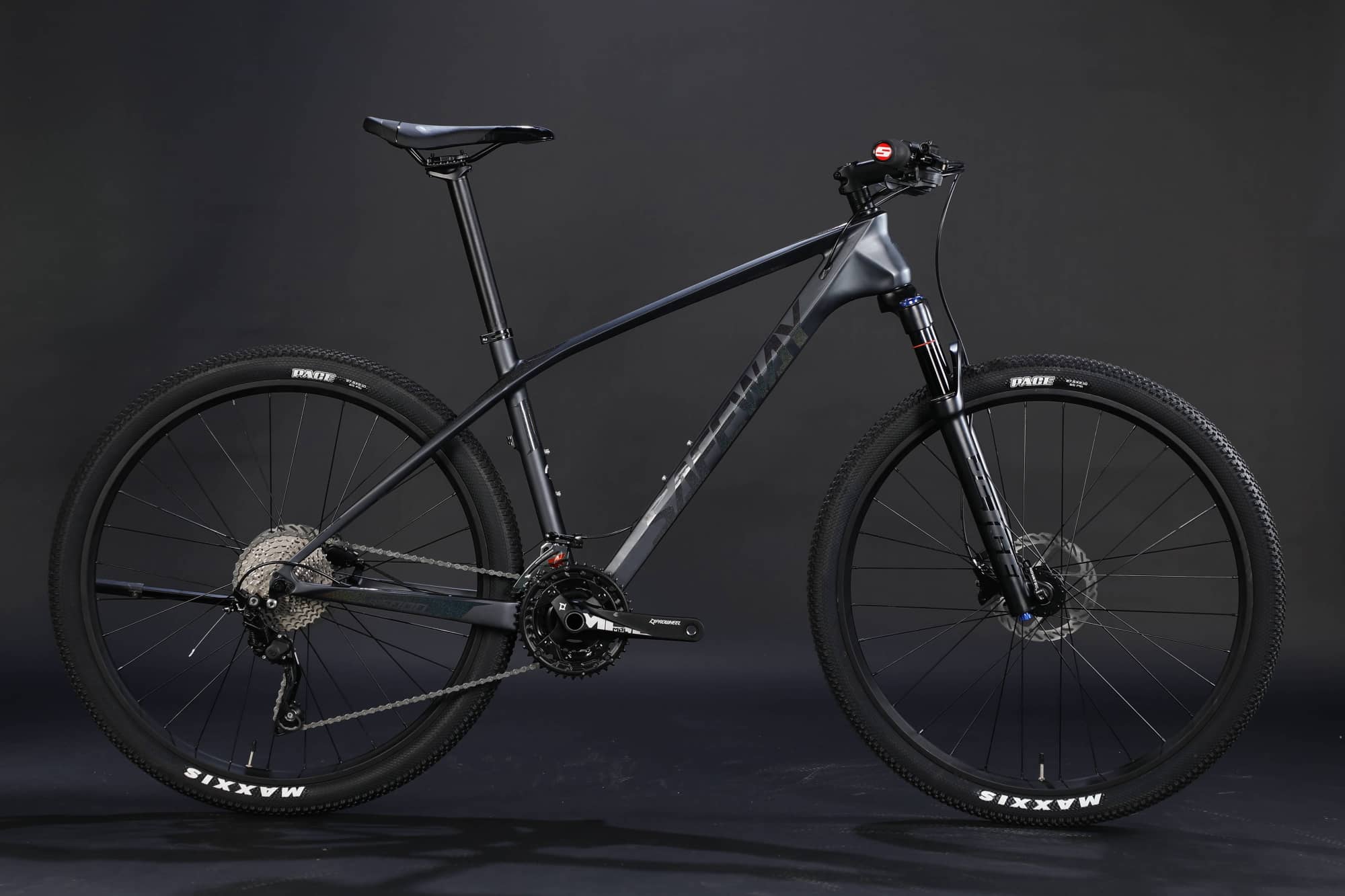

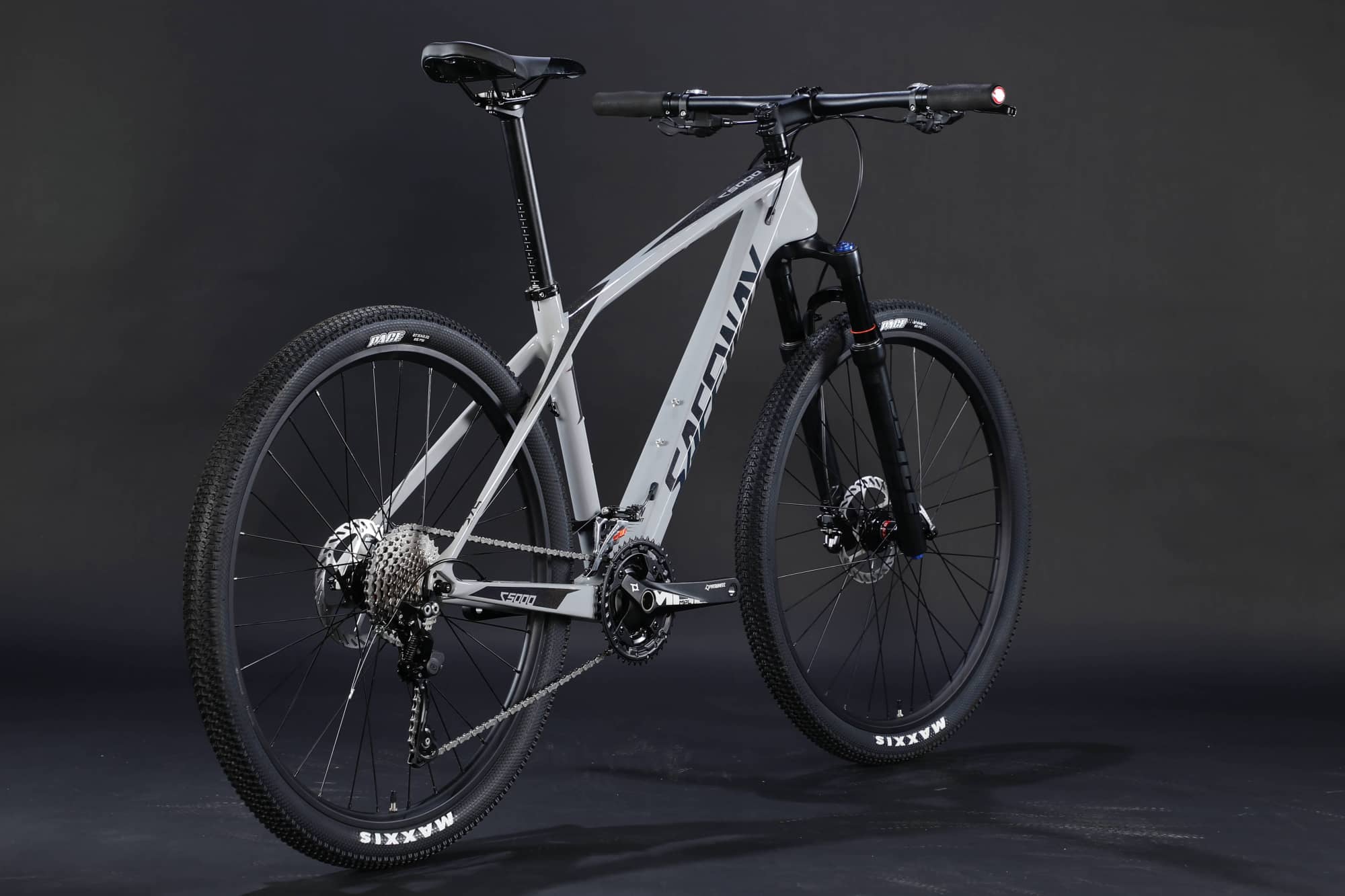

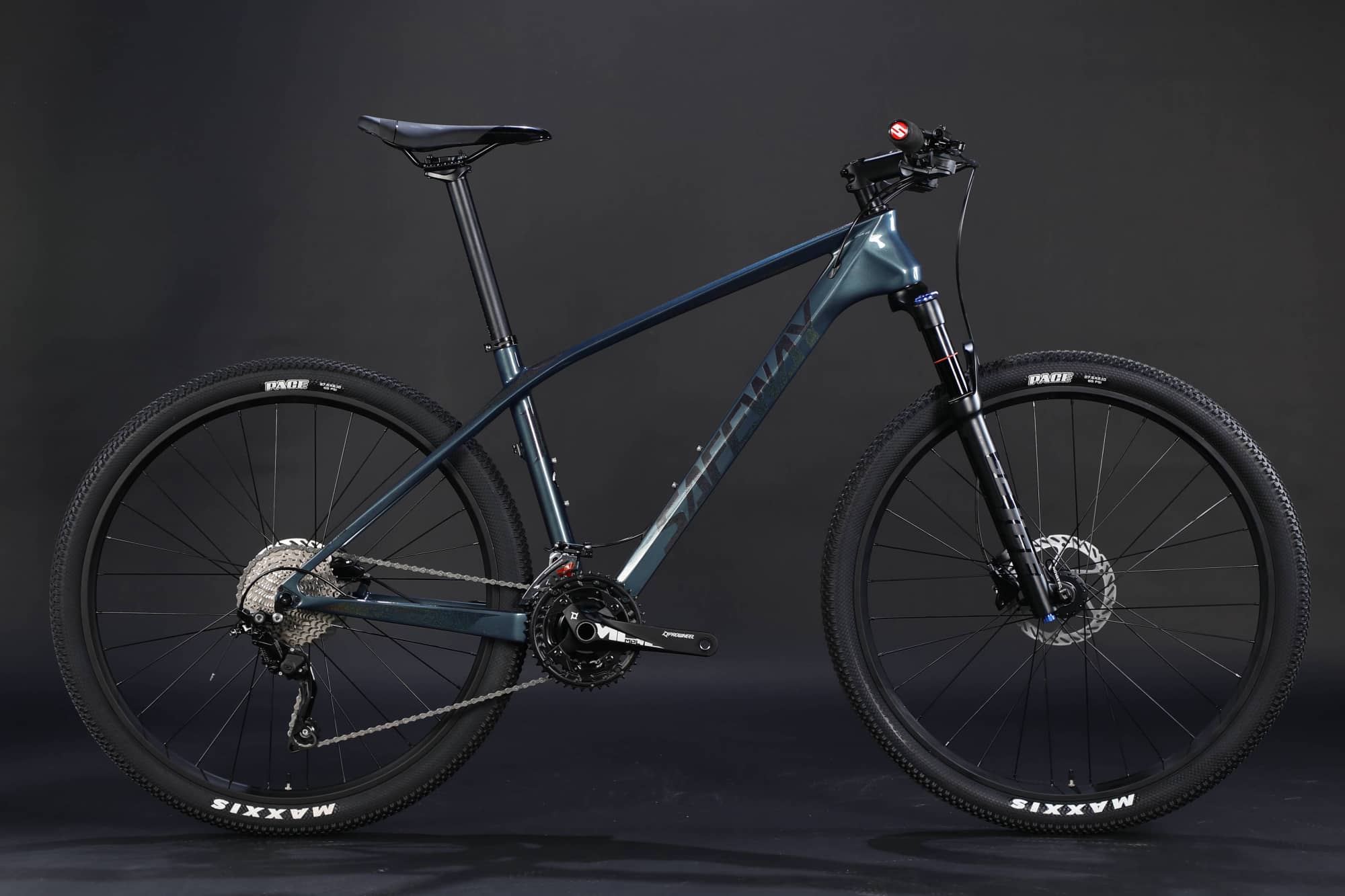

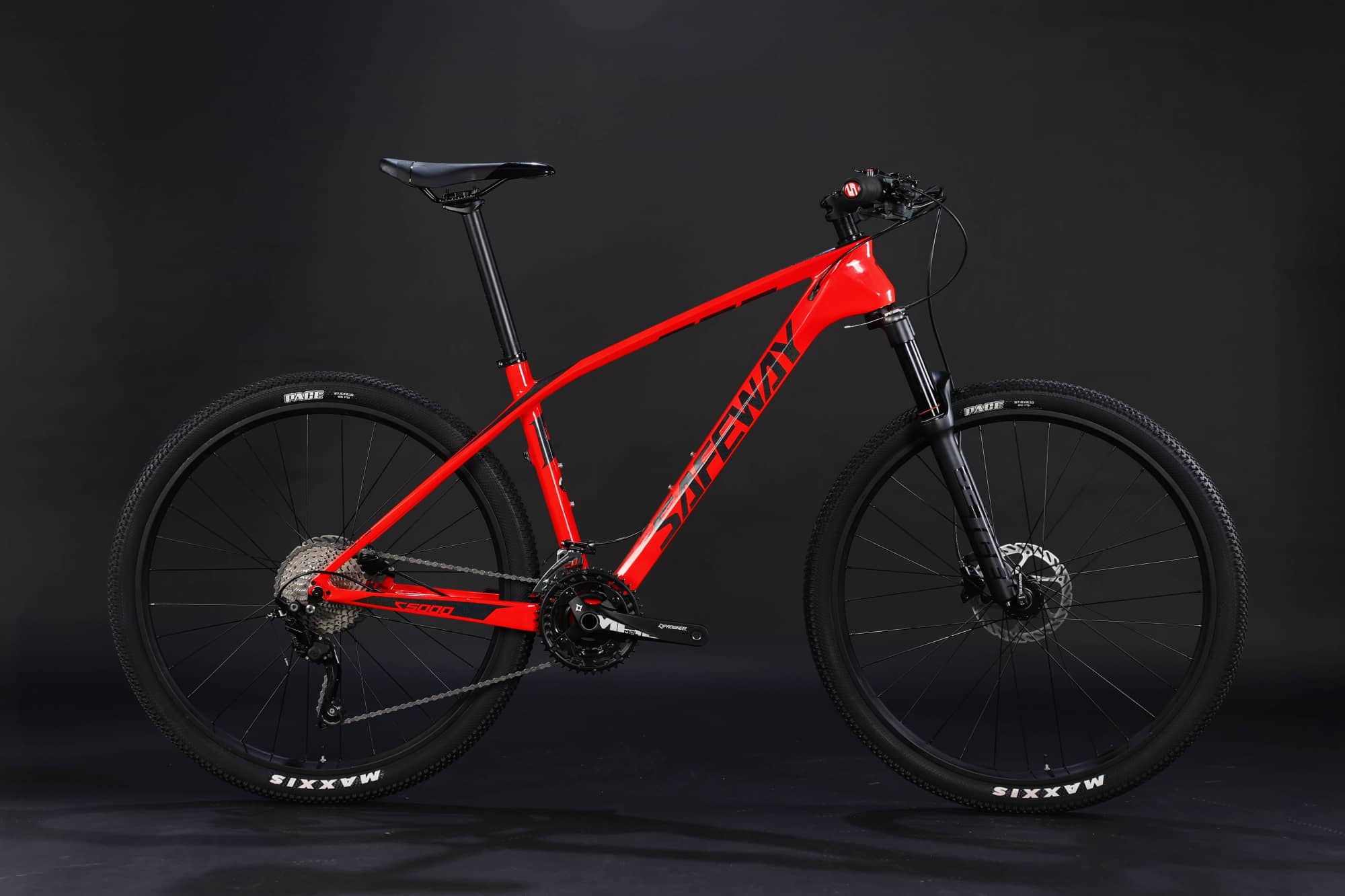

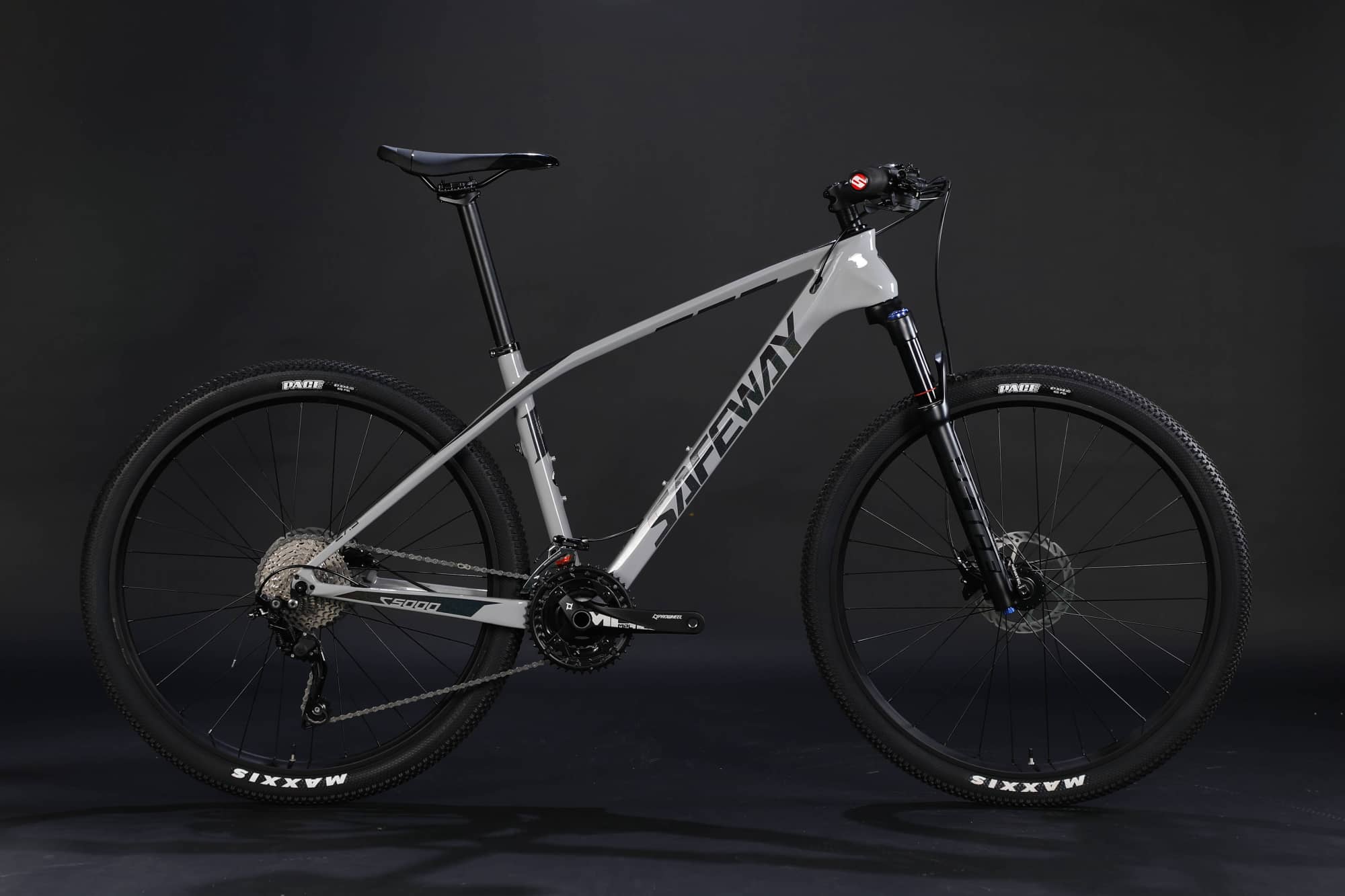

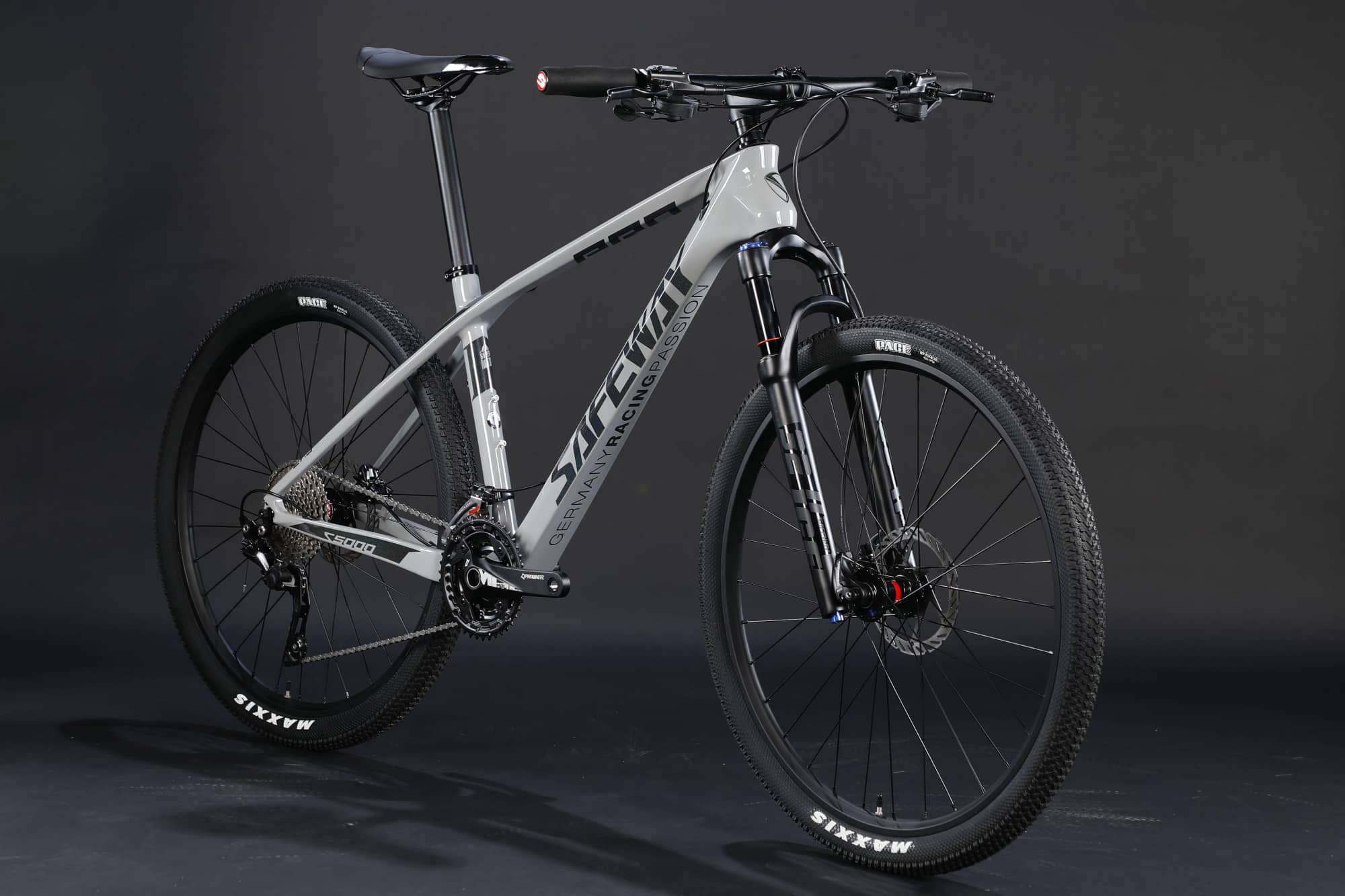

C5000

Specs

Frameset

  • Frame
    27.5" Carbon Frame,Toray T800 ,threaded BB,flat-mount disc,4 Colors Options
  • Fork
    27.5",28.6*25.4*30*170 without threaded,3/8*100,H:495,Air Presure suspension,flat-mount for disc Brake,With lockout

Drivetrain

  • Shifters
    SHIMANO M6000 3*10 Speed
  • Front Derailleur
    SHIMANO FD-M6000
  • Rear Derailleur
    SHIMANO RD-M6000
  • Crankset
    1/2*3/32,24*38T /170mm，hollow,9/16
  • Chain
    1/2*3/32,116 Links
  • Cassette
    1/2*1/128*11 Speed,11-36T

Brakes

  • Brakes
    SHIMANO MT200 Hydraulic Disc brake, with 160mm steel rotor

Wheels

  • Rims
    Alloy rims,27.5*14G*32H,A/V
  • Front Hub
    M9*14G*32H*100*108,2 bearings,with Q/R
  • Rear Hub
    M10*14G*24H*135*145mm,4 bearings,with Q/R
  • Tire
    Continental 27.5*2.10 Black

Cockpit

  • Stem
    Alloy,∮28.6*∮31.8,E=90mm,-7°,H=40mm
  • Handlebar
    720*2.0T*31.8*22.2mm,-9°
  • Grips
    Rubber Grips,22.2*120mm,with alloy rings

Saddle

  • Seatpost
    Alloy,31.6*2.2T*300mm
  • Saddle
    MTB Saddle

Please note that, based on component availability and other factors, specifications are subject to change without notice.
